Custom bump bars allow seamless configuration and mapping of buttons on third-party equipment, enabling the reuse of existing hardware for a smoother transition to Kitchen iQ.
Custom Bump Bar Topics
Adding New Custom Bump Bars
Follow these steps to add a new bump bars:
-
Click Add
-
Enter the following details, Name | select from the drop down the required Assigned Button
Each assigned function must be added before completing the setup and being able to save the configuration -
Click Save
Custom bump bar configurations can be assigned either:
-
Per screen basis in Screens configuration
or
-
Per site in General
Field Settings & Information
Custom Bump Bar Settings

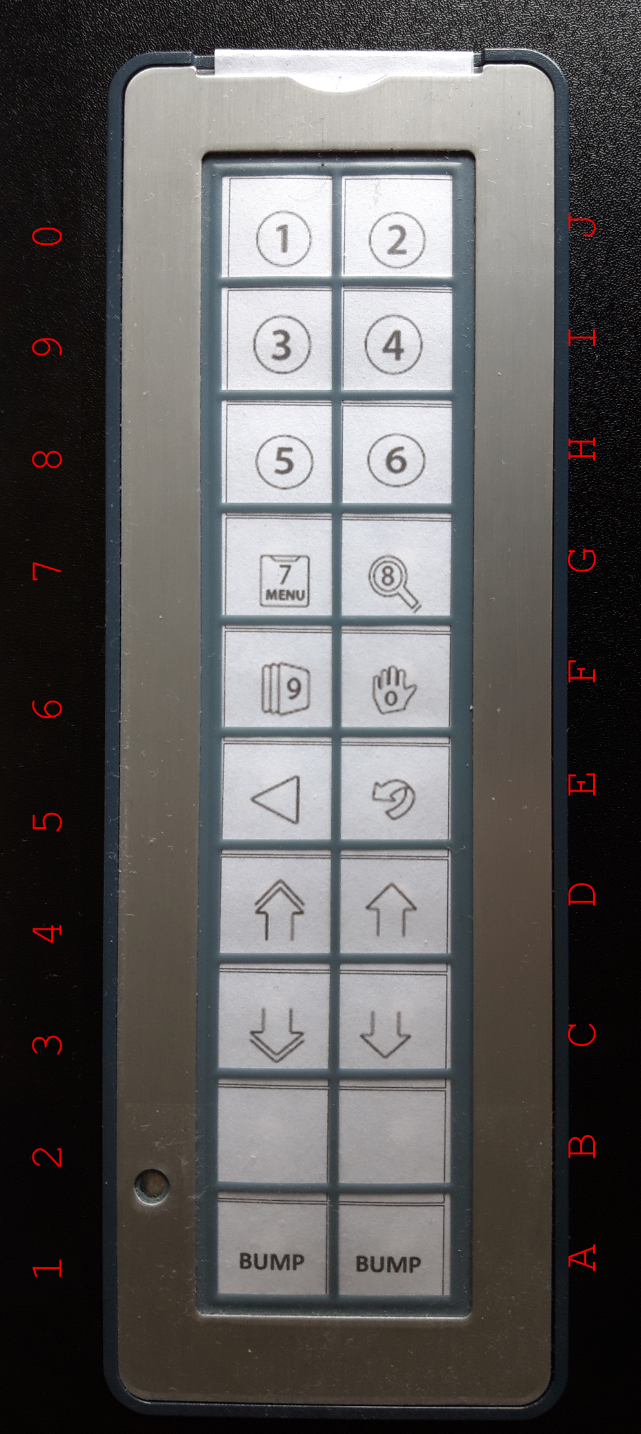

Each button on a bump bar can be configured to a Kitchen iQ command / screen action.
More information on custom bump bar settings
| Description |
|---|
|
Bumps the items / order with the no 1 icon / Enters '1' when prompted for a PIN |
|
Bumps the items / order with the no 2 icon / Enters '2' when prompted for a PIN |
|
Bumps the items / order with the no 3 icon / Enters '3' when prompted for a PIN |
|
Bumps the items / order with the no 4 icon / Enters '4' when prompted for a PIN |
|
Bumps the items / order with the no 5 icon / Enters '5' when prompted for a PIN |
|
Bumps the items / order with the no 6 icon / Enters '6' when prompted for a PIN |
|
Opens / Closes the Menu / Enters '7' when prompted for a PIN |
|
Opens / Closes the 'Account Details' view for the selected item / Enters '8' when prompted for a PIN |
|
Single press cycles through the views on the current channel. Long press moves focus to a different channel (if more than one) / Enters '9' when prompted for a PIN |
|
Manual hold / unhold / Enters '0' when prompted for a PIN |
|
Back / Home / Returns to the 'Home' view for the screen |
|
Unbump / Clears the last digit entered when prompted for a PIN |
|
Order Up / Moves to the previous order / Long press moves to the first order on the page |
|
Order Down / Moves to the next order / Long press moves to first item within an order |
|
Item Down / Moves to the previous items within an order / Long press moves to last items within an order |
|
Bump |
