Head Office | Site Master

Created 18 August 2025 • Updated 18 August 2025

Site Details

The site details page stores key information about the site, including its name, address, and contact details. This information is used throughout the system for identification, communication and reporting purposes.

Site Details Topics
Navigate to Base Data → Estate Structure

Adding Sites

Zonal recommends using the 'Duplicate' option when creating sites so that it will copy all Base Data settings from the template site

Follow these steps to add a site:

  1. Select a Site from the estate structure

  2. Click Duplicate

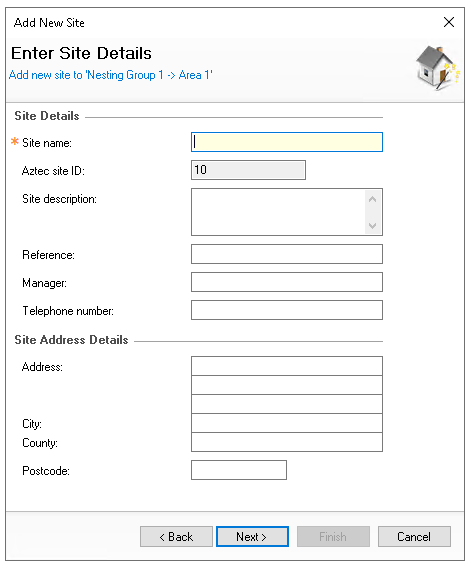

  3. Enter the Site Name

  4. Enter additional details if required for Description | Reference | Address | Contact Information

  5. Click Next

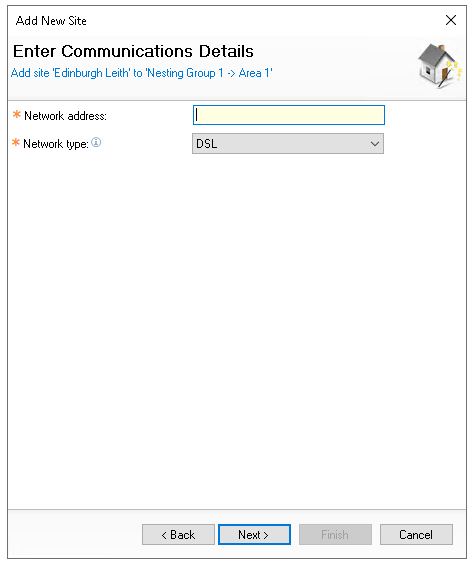

  6. Enter the Network Address - IP or Host Name

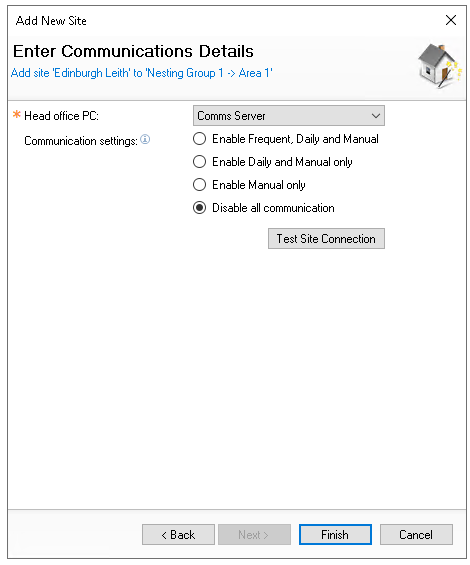

  7. Select the Head Office PC for this site

    If there is only 1 head office PC this will be preselected
    Zonal recommends to set the site 'Disable all Communications' so that it is not part of any comms jobs until the site is installed and PC available

  8. Click Finish

Settings

Navigate to Base Data → Estate Structure → Site Settings → Site Details

When a site is selected the following table outlines each setting and its corresponding functionality.

Setting Description Additional Information
Site Details
Site Name

Name of the site


Site Description

Description of the site



Reference Operation reference of the site

This is used in other modules for identification of the site and can be use when having integrations with other systems

Manager

Manager of the company


Telephone Number

Telephone number of the company


Site Address Details
Address / City / County / Postcode

Full address details of the company


CLM Prefix Group
Group Name

The CLM Prefix Group defines any POS integrations that require a prefix, enabling the point of sale terminal to identify the correct integration based on the prefix provided

For new sites this is left blank and is inherited from the estate or company details, alternatively selecting a new group can be selected which will apply to the selected site

Location Tags
Location Tags

Any created location tags will be displayed for selection at the site level
