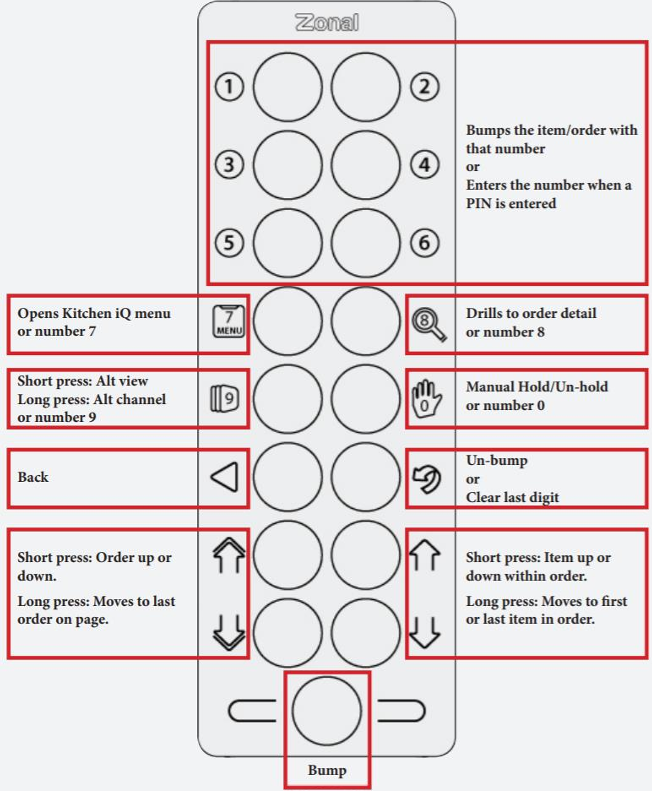

Intro to Bump Bar
The Kitchen iQ bump bar is equipped with a large number of buttons, allowing the kitchen screen system to be optimised for both large and small organisations.
Each button has an alternative keyboard shortcut. These shortcuts vary according to whether the kitchen screen is configured to use a keyboard or a vertical bump bar.
If a kitchen screen is configured to use a vertical bump bar but for some reason it is not working, connecting a keyboard instead will provide control over the kitchen screen using the vertical bump bar keyboard shortcuts.
If a kitchen screen is configured to use a keyboard, the standard keyboard shortcuts will apply.
| Bump button | Description | Bump Bar Configuration | |
|
Vertical bump bar keyboard shortcuts |
Standard keyboard shortcuts | ||
|
Bumps the item/order with the no.1 icon.
Enters ’1’ when prompted for a PIN. |
J | 1 |
|
Bumps the item/order with the no.2 icon.
Enters ’2’ when prompted for a PIN. |
A | 2 |
|
Bumps the item/order with the no.3 icon. Enters ’3’ when prompted for a PIN. |
K | 3 |
|
Bumps the item/order with the no.4 icon. Enters ’4’ when prompted for a PIN. |
B | 4 |
|
Bumps the item/order with the no.5 icon. Enters ’5’ when prompted for a PIN. |
L | 5 |
|
Bumps the item/order with the no.6 icon. Enters ’6’ when prompted for a PIN. |
C | 6 |
|
Opens/closes the Kitchen iQ menu. Enters ’7’ when prompted for a PIN. |
M | M or 7 |
|
Drills down into the selected item to show order details. Enters ’8’ when prompted for a PIN. |
D | D or 8 |
|
A single press displays the alternative view. Press and hold to move focus to a different channel (if more than one is configured.) Enters ’9’ when prompted for a PIN. |
N | A, Tab or 9 |
|
Manual hold/unhold. Enters ’0’ when prompted for a PIN. |
E | H or 0 (zero) |
|
Back | O (letter) | J |
|
Unbump. Clears the last digit when prompted for a PIN. |
F | U or Backspace |
|
Order Up. Moves between orders. |
P | Up Arrow |
|
Order Down. Moves between orders. |
Q | Down Arrow |
|
Item Up. Moves between items within an order. A long press takes you to the first item within an order. |
G | Left Arrow |
|
Item Down. Moves between items within an order. A long press takes you to the last item within an order. |
H | Right Arrow |
|
Bump. | I (letter) | Space / Enter |
