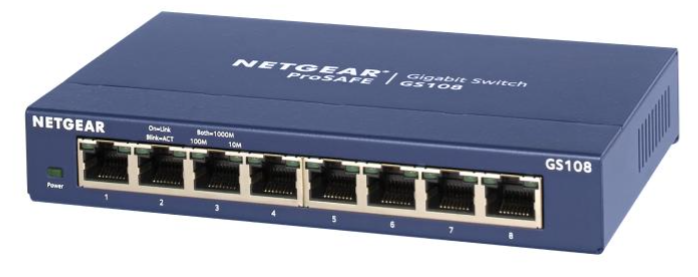

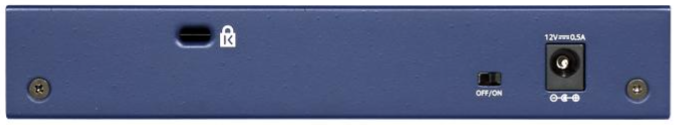

8-Port Gigabit Ethernet Unmanaged Switch
Part Number: SWITCH8-05
Status: Active
Release Date: 15 August 2022
Description
Zonal approved 8-Port network switch. Plug and play, robust, energy efficient network switch to support your Zonal infrastructure
Product Details
| General |
Speed: 10/100/1000Mbps Giganet Etehrnet Number of Ports: 8 PoE Ports: NA Energy Efficient Ethernet Support (IEEE 802.3 AZ): Yes MAC Table Size: 4K Packet Buffer Size: 192KB Energy Efficient Ethernet support: Yes - Compliant with IEEE802.3az Energy Efficient Ethernet mode |
| Physical |
Dimensions: 158 x 102 x 27 mm (6.2 x 4.0 x 1.1 in) Weight: 0.47 kg (1.04 lb) |
| Power |
External Power Adapter: Input: 240Vac, Output: 12V/0.5A, 3 Pin UK Plug Power Consumption: 5W |
| Environmental |
Operating Temperature: 32° to 104°F (0° to 40°C) Humidity: 90% maximum relative humidity, non-condensing Altitude: 10,000 ft (3,000 m) maximum |
| Certifications |
Electromagnetic Compliance: CE Class B, FCC Class B, VCCI Class B, C-Tick Class B Safety Agency Approvals: CE Mark |
| Box Contents | 8 Port Network Switch, Power Supply |
Documentation
| Data Sheet | GS105v5_GS108v4_DS_tcm148-76758_tcm158-108734.pdf (netgear.com) |
| Installation Guide | ProSafe 8-Port Gigabit Ethernet Switch GS108v3 Installation Guide (netgear.com) |
Accessories & Spares
No Applicable Accessories or Spaces associated with this item
