8 Port PoE Desktop Switch
Part Number: SWITCH8-04
Status: Active
Release Date: 22 November 2022
Description
8 Port, unmanaged, PoE Desktop switch. 125W power budget with each port rated for 30W
Note: There are 2 variations for this Zonal Part Number.
D-Link DGS-1008MP and TP-Link TL-SG1210MP

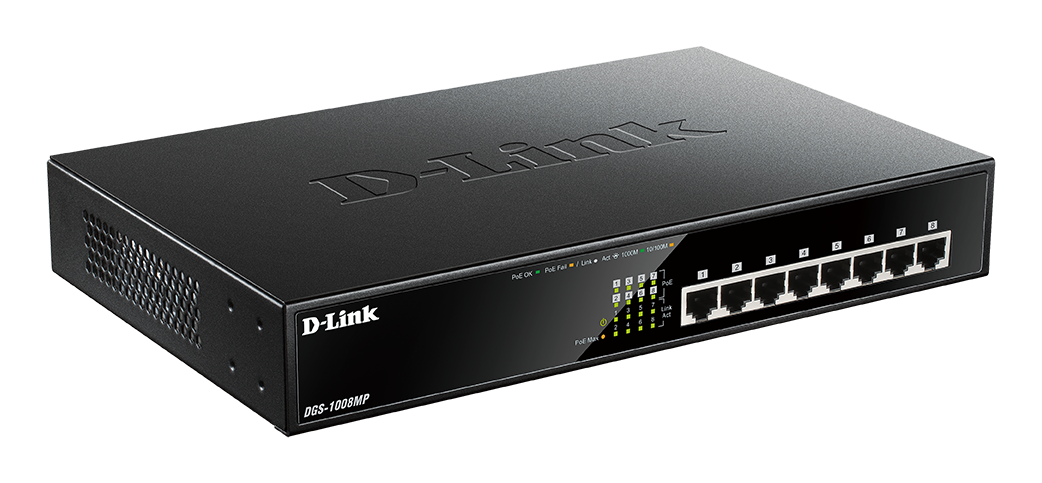

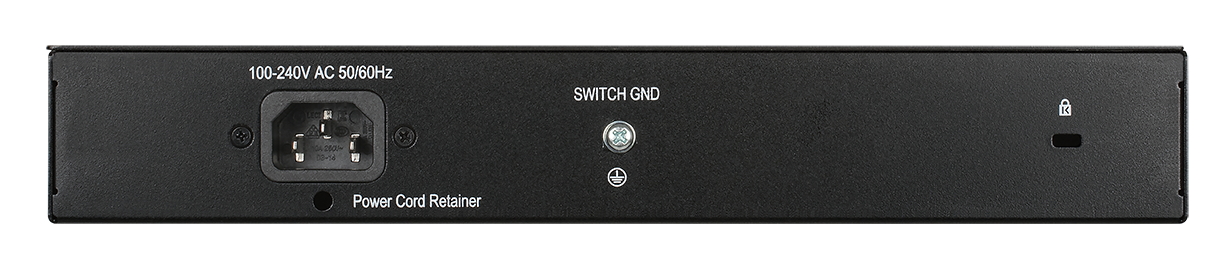

DGS-1008MP

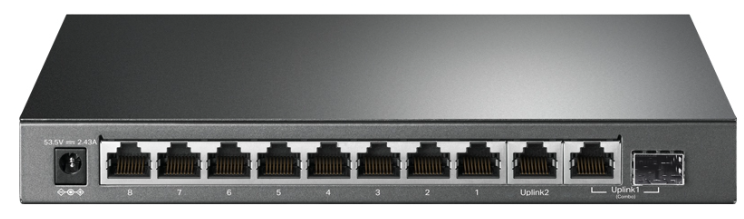

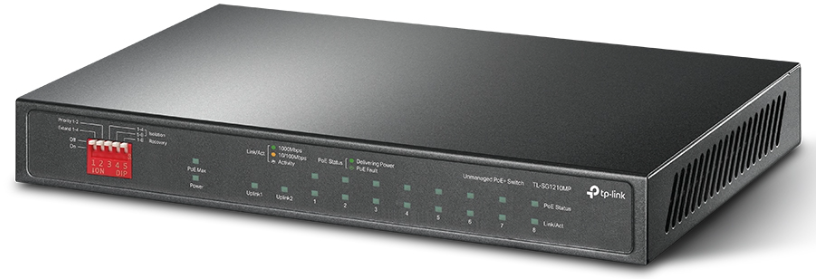

TL-SG1210MPP
Product Details
DGS-1008MP |
TL-SG1210MP |
|
| General |
No of Ports 8 x RJ45 all with PoE. Networking Unmanaged plug and play 10/100/1000BASE-T Full/half-duplex for 10/100 Mbps Ethernet Full-duplex for 1000 Mbps Ethernet Auto MDI/MDI-X crossover on all ports PoE Functionality IEEE 802.3at and 802.3af compliant 130W total power budget Up to 30W power output per port Switching Capacity 16Gbps Other 802.3az Energy Efficient Ethernet Support Jumbo Frame MAC address table 4k |
No of Ports 8 x RJ45 with PoE, 1 Uplink Port, 1 Gigabit SFP Port Networking Unmanaged plug and play 10/100/1000BASE-T Full/half-duplex for 10/100 Mbps Ethernet Full-duplex for 1000 Mbps Ethernet Auto MDI/MDI-X crossover on all ports PoE Functionality IEEE 802.3at and 802.3af compliant 123W total power budget Up to 30W power output per port Switching Capacity 20Gbps Other 802.3az Energy Efficient Ethernet Support Jumbo Frame MAC address table 4k |
| Physical |
Dimensions 280 x 180 x 44 mm (11.02 x 7.08 x 1.73 in) |
Dimensions 209 x 126 x 26mm (8.2 x 4.9 x 1.0in) |
| Power |
Internal Power Supply Input: 100 to 240 V AC, 50/60 Hz Fanless |
External Power Supply
Input: 100-240 VAC, 50/60 Hz Output: 53.5VDC/2.43 A Fanless |
| Environmental |
Operating 0 to 40 ˚C (32 to 104 ˚F) 0% to 95% RH non-condensing Storage -10 to 70 ˚C (14 to 158 ˚F) 0% to 95% RH non-condensing |
Operating 0˚C to 40˚C (32˚F to 104˚F) 10% to 90%RH non-condensing Storage -40˚C to 70˚C (-40˚F to 158˚F) 5% to 90%RH non-condensing |
| Certifications |
CE Class A, FCC Class A, VCCI Class A, CCC Class A , FCC Class A cUL, CB, CCC, LVD |
CE, FCC |
| Box Contents |
DGS-1008MP Manual Power cord IEC C13 to UK 3 Pin Plug |
TL-SG1210MP External Power Supply Power cord IEC C13 to UK 3 Pin Plug |
Documentation
Accessories & Spares
No Applicable Accessories or Spaces associated with this item
