Ethernet Switch Fast Unmanaged 16 Port

Part Number: SWITCH16-02

Status: Active

Release Date: March 2020

Description

16-Port Fast Ethernet Unmanaged Desktop Switch, plug and play functionality

Note: There are 2 variations for this Zonal Part Number and they are interchangeable

D-Link DES-1016D and TP-Link TL-SF1016D

DES-1016D

TL-SF1016D



Product Details

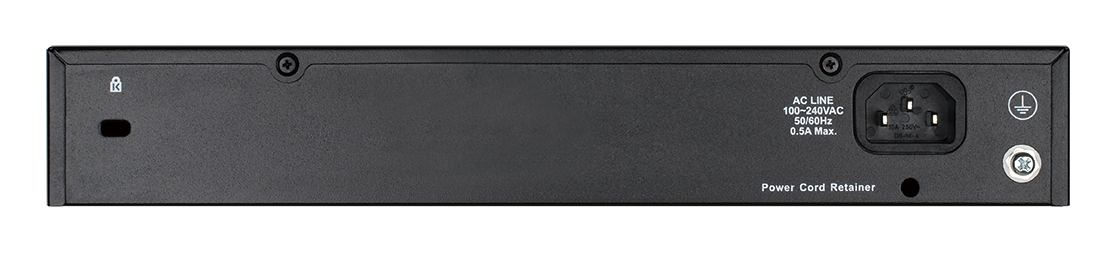

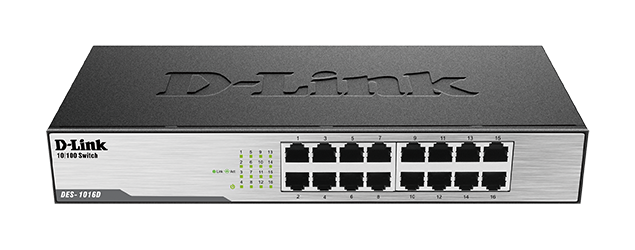

DES-1016D

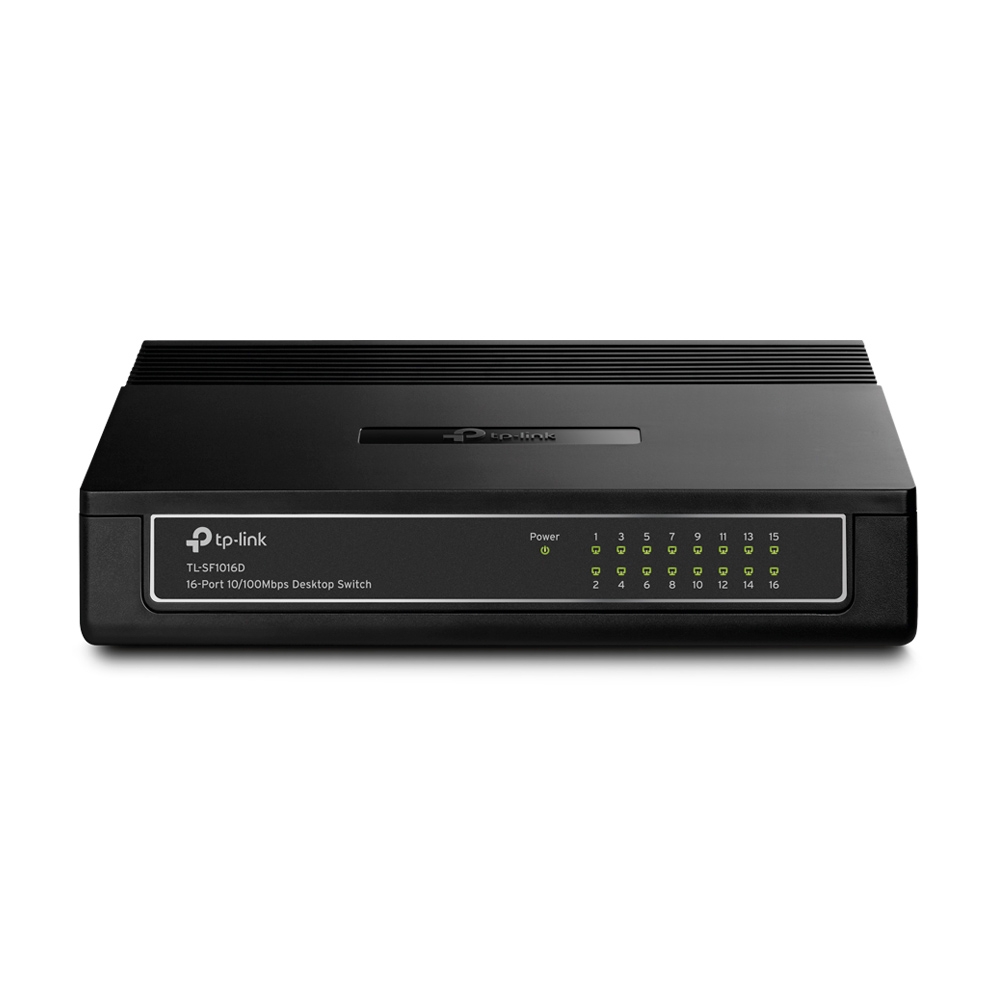

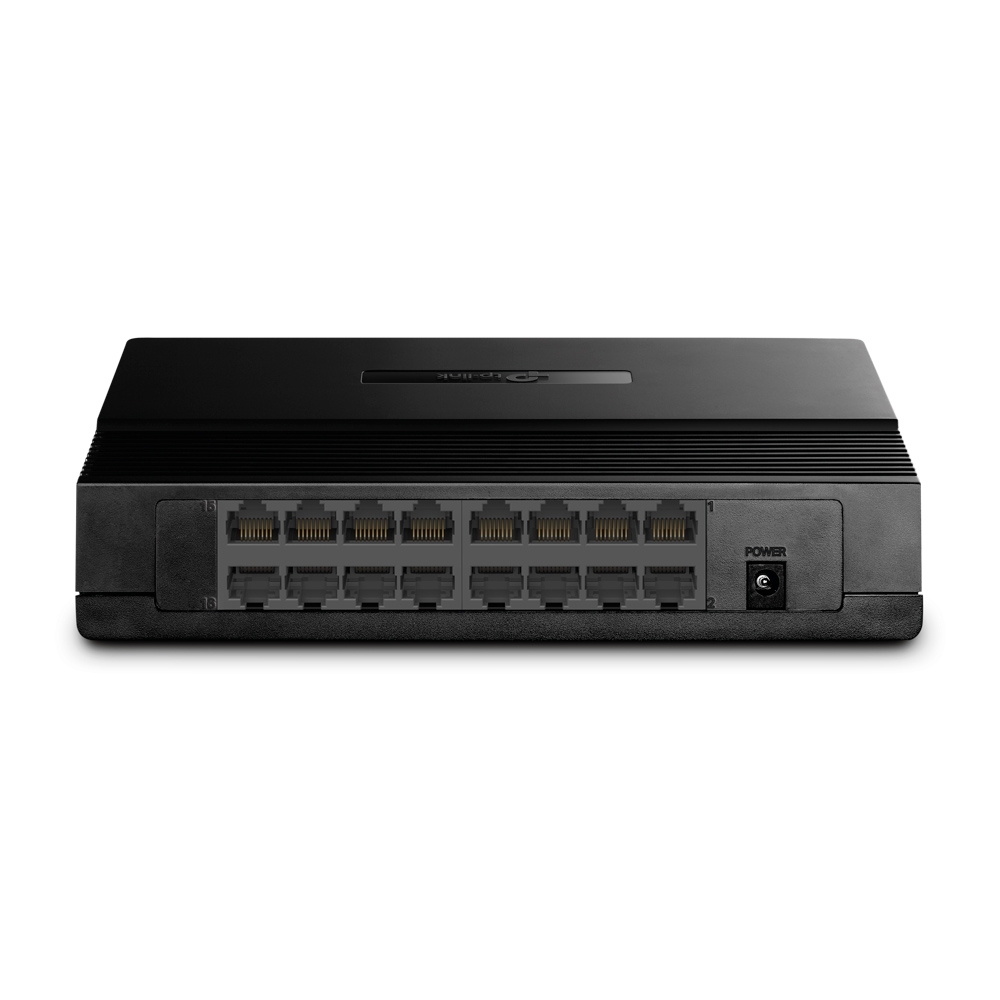

TL-SF1016D

General

(See data sheet for full specifications)

Speed

10/100Mbps Fast Ethernet

Number of Ports

16 x RJ45

Networking

Unmanaged plug and play

10/100/BASE-T

Full/half-duplex for 10/100 Mbps Ethernet

Auto MDI/MDI-X crossover on all ports

Switching Capacity

3.2Gbps

Other

Fanless

802.3az Energy Efficient Ethernet Support

MAC address table 8k

Speed

10/100Mbps Fast Ethernet

Number of Ports

16 x RJ45

Networking

Unmanaged plug and play

10/100/BASE-T

Full/half-duplex for 10/100 Mbps Ethernet

Auto MDI/MDI-X crossover on all ports

Switching Capacity

3.2Gbps

Other

Fanless

802.3az Energy Efficient Ethernet Support

MAC address table 2k
Physical

Dimensions

280 x 180 x 44 mm (11.02 x 7.08 x 1.73 in)

Weight

1.06 kg (2.34 lbs)

Dimensions

200 x 142 x 40 mm (7.9 x 5.6 x 1.6 in)

Weight

0.9 kg (2.0 lbs)
Power

Internal Power Supply

Input: 100 to 240 V AC, 50/60 Hz

Fanless

 External Power Supply

Input: 100-240 VAC, 50/60 Hz

Output: 9.0VDC/0.6A

Fanless
Environmental Operating

0 to 40 ˚C (32 to 104 ˚F)

10% to 90% RH non-condensing

Storage

-10 to 70 ˚C (14 to 158 ˚F)

5% to 90% RH non-condensing

 Operating

0 to 40 ˚C (32 to 104 ˚F)

10% to 90% RH non-condensing

Storage

-10 to 70 ˚C (14 to 158 ˚F)

5% to 90% RH non-condensing
Certifications CE, FCC, ICES-003, BSMI, RCM FCC, CE, RoHs
Box Contents

DES-1016D

Power Cord

Rack Mount Bracket

Quick Installation Guide

TL-SF1016D

Power Adapter

Power Cord

User Guide





Accessories & Spares

No Applicable Accessories or Spaces associated with this item
