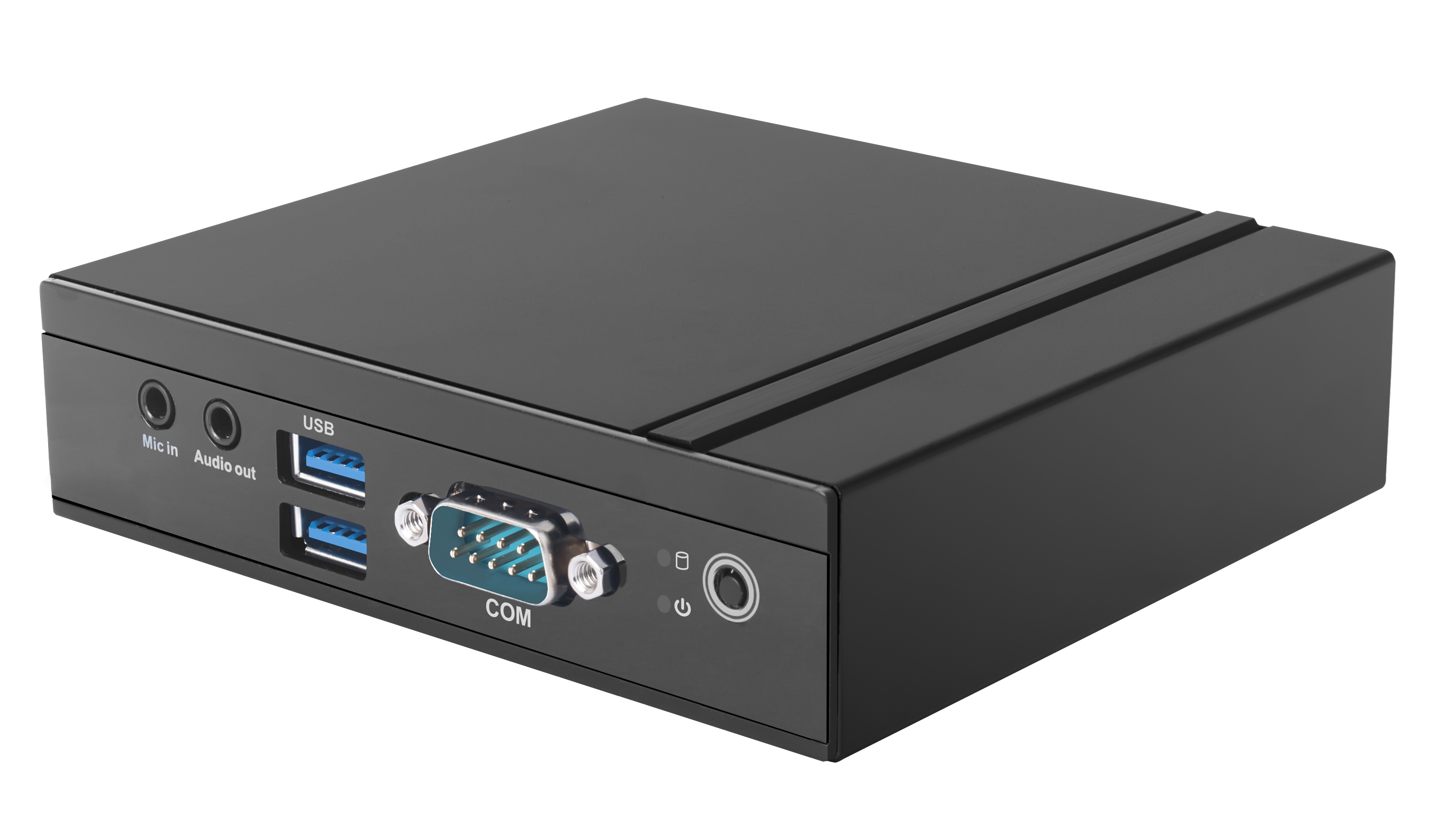

Zonal POS Server Solution

Part Number: EPOS-SERVER-IOT

Status: Active

Release Date: 22 September 2023

WIN 10 LTSC IOT based POS Server that is a seamless replacement for the Z500.

A robust energy efficient solution for your EPOS System.

Supports up to 3 serially connected devices.

Note: Minimum Aztec Version is 3.26

Product Details

General	CPU Intel Celeron N3350 Dual Core 2.2GHz RAM 4GB LPDDR4 (On Board) Storage 64GB on board eMMC (1 x Full Size Mini-PCIe for MSATA) OS Windows 10 2019 IOT LTSC (Meets minimum hardware requirements for future MS Upgrades) Connectivity 1 x Gigabit Ethernet 2 x USB-2.0 Type-A 2 x USB-3.2 Type-A 1 x RS232 Serial Port (i.e Receipt/Kitchen Printers) Optional: 2^nd and 3^rd serial port using USB to RS232 adaptors. Display Interface 1 x HDMI (max 3840 x 2160) 1 x Display Port (Max 4096 x 2304)
Physical	Dimensions 116mm x 107mm x 30mm (4.59" x 4.23" x 1.18")
Power	External Power Brick Input:110 -240Vac, 50-60Hz, 1A Output: 12 VDC, 2.0 A
Environmental	Operating 0°C ~40°C (32°F~122°F) @0.7m/s Air Flow Humidity 95% @ 40C (Non Condensing)
Certifications	CE, UKCA, FCC Class B
Box Contents	EPOS-Server-IOT Windows 10 IOT License (Fixed to unit) PSU UK Mains Cable VESA Mount + Fixings
