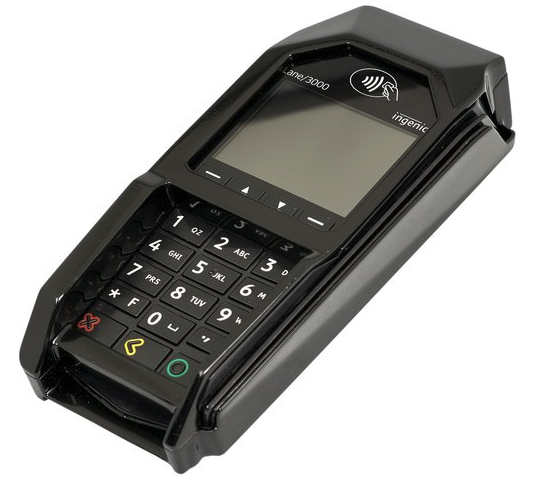

Ingenico LANE/3000 Wired PED
Part Number: PINPAD16-FP
Status: Active
Release Date: 21 February 2023
Description
Robust hand held Pin Entry Device featuring Chip and Pin, Card Swipe and Contacless functionality.
Designed for fixed counter top installations with serial and LAN connectivity.
Product Details
|
General See data sheet for detailed specifications |
Processor Cortex M5 Memory 256MB Flash 128MB Ram OS Telium TETRA HTML5 Card Reader Magstripe : ISO1/2/3,500K reads lifespan Smart Card: EMV Level 1,500K reads lifespan Contactless: EMV Level 1 3.0 spec compliant Connectivity RS232 Ethernet 10/100 base T |
| Physical |
Dimensions 3.26’’ x 7.08’’ x 1.69’’ (83 x 180 x 43 mm) Weight 8.89 oz (254 g) |
| Power |
External PSU with integrated UK 3-Pin Plug Input: 100 - 240Vac, 50/60Hz, 0.5Amax Output: 8Vdc, 2A |
| Environmental |
Operating Temperature 32°F to 122°F (0 to +50°C) Storage Temperature -4°F to 131°F (-20 to +70°C) Relative Humidity 104°F (85% HR at +40°C) |
| Certifications | PCI PTS 5.x & 6.x certified, rated for attended and self-service semi-attended use cases |
| Box Contents |
Lane/3000 RS232 Serial Cable UK Mains Power Supply |
Documentation
| Data Sheet | Lane/3000 Wired Counter Top PED (External Link: ingenico.com) |
Accessories & Spares
| Item | Part Number | Status |
|---|---|---|
| Ingenico 8Vdc PSU | PINPAD16-PSU-UK | Active |
| Ingenico RS232 Serial Cable, 2m | PINPAD16-SCBL-2M | Active |
| Ingenico RS232 Serial Cable, 5m | PINPAD16-SCBL-5M | Active |
| Ingenico PED to LAN cable, 2m | PINPAD16-LCBL-2M | Active |
| Ingenico PED to LAN cable, 4m | PINPAD16-LCBL-4M | Active |
| Ingenico Lane 3000 Back Plate for PED Counter Top Stand | PINPAD10-PEDPACK-02 | Active |
| PED Counter Top Stand With Lock |
PINPAD-STAND |
Active |
| 9 Pin D-Type to 8 Pin RJ45 Serial Adapter | LDAD07 | Active |
