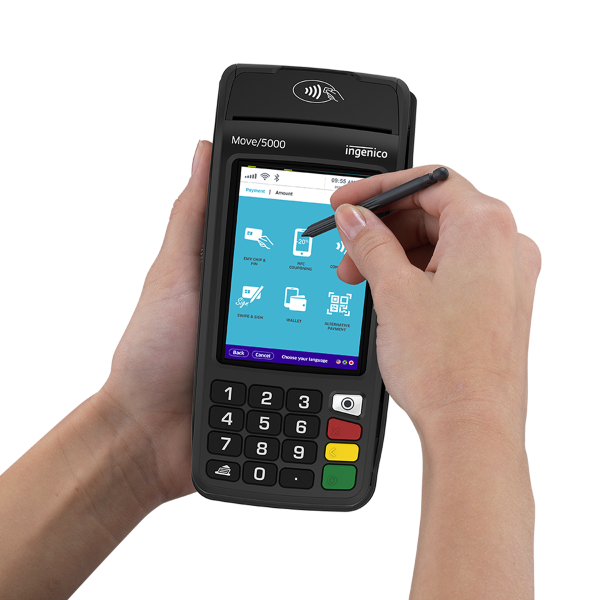

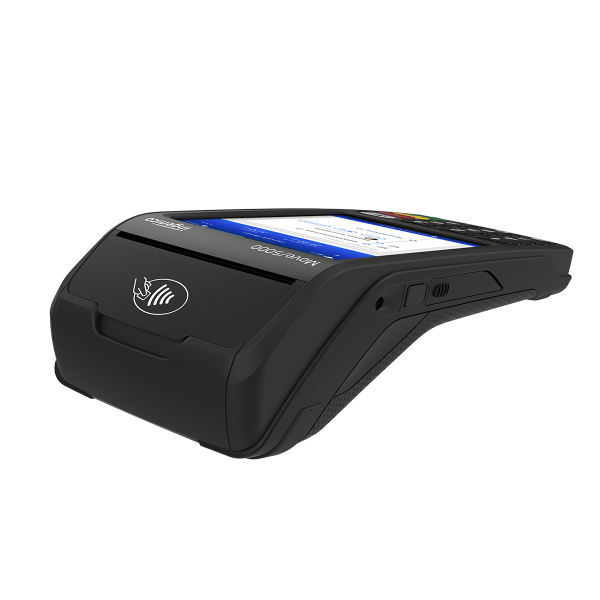

Ingenico Move/5000 Mobile PED
Part Number: PINPAD15-FP
Status: Active
Release Date: 20 February 2023
Description
Robust hand held Pin Entry Device featuring Chip and Pin, Card Swipe and Contacless functionality.
Designed for mobile applications featuring BT, WIFI and integrated printer.
Supplied with docking station providing charging and communication functions.
Product Details
|
General See data sheet for detailed specifications |
Processor Cortex M5 Memory 512MB Flash 512MB Ram OS Telium TETRA HTML5 Card Reader Magstripe : ISO1/2/3,500K reads lifespan Smart Card: EMV Level 1,500K reads lifespan Contactless: EMV Level 1 compliant Connectivity Wifi BT LAN Battery Li-ion 2900mAh Thermal Printer Speed: up to 30 lines/s Paper Roll: 58mm x Ø40mm |
| Physical |
Dimensions 6.6’’ x 3.1’’ x 2.2’’ (169 x 78 x 57 mm) Weight 11 oz (320 g) including battery |
| Power |
External PSU with integrated UK 3-Pin Plug Input: 100 - 240Vac, 50/60Hz, 0.3Amax Output: 5Vdc, 1.5A |
| Environmental |
Operating Temperature 14°F to 122°F (-10 to +50°C) Storage Temperature -4°F to 131°F (-20 to +55°C) Relative Humidity 104°F (85% HR at +40°C) |
| Certifications | PCI PTS 6.x and 5.x online & offline certified |
| Box Contents |
Move/5000 Docking Cradle/Base Station Ethernet Cable UK Mains Power Supply |
Documentation
| Data Sheet | Move/5000 Mobile PED (External Link: ingenico.com) |
Accessories & Spares
| Item | Part Number | Status |
|---|---|---|
| Ingenico 5Vdc PSU | PINPAD15-PSU-UK | Active |
| Ingenico Charging and Communications Cradle | PINPAD15-HUB | Active |
| Ingenico Charging Only Cradle | PINPAD15-CHRG | Active |
| Replacement Li-ion Battery | PINPAD15-BATT | Active |
| Replacement Printer Roller | M5000-PRN-ROLLER | Active |
| Replacement Printer Roll Cover | M5000-PRN-ROLCOVER | Active |
| CAT5 LAN cable - 2M Grey | LDC507 | Active |
| Thermal Paper, 57mm wide x Ø40mm | PINPAD8-PAP | Active |
