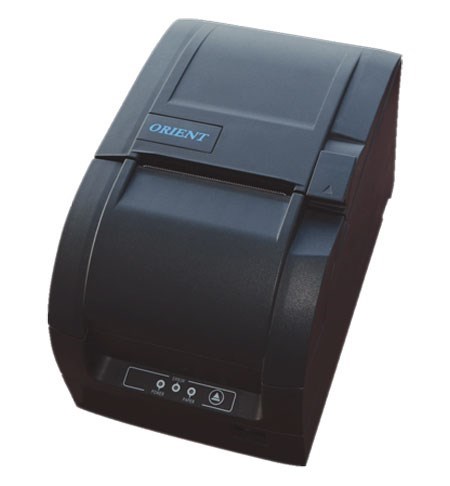

Impact Kitchen Printer (IP)
Part Number: PRN32-IP-NS
Status: Active
Release Date: 2015
Heavy duty 80mm, dot matrix kitchen printer
Ethernet/IP interface version.
Supports 2 ply paper for duplicate printing and dual colour ribbons.
Product Details
|
General See data sheet for full specification |
Print Width Max. 400(half dots)/200(full dots) Print Speed 4.7LPS Resolution 80 x 144 DPI Interfaces Ethernet, RJ45 PaperDimensions Width: 80±0.5mm, 76±0.5mm, 69.5±0.5mm, 57.5±0.5mm OD: 83mm max Paper Thickness Single layer: 0.06-0.085mm Multi-layer paper (l original+1 copy): 0.05-0.08mm total thickness<0.14 mm |
| Physical |
Dimensions 160 x 245 x 155 mm Weight 3.2kg Colour Black |
| Power |
Input -40~60°C, 20%-93% RH(40°C) Output 24±5%V DC,1.5A |
| Environmental |
Operating 5~45°C, 20%-90% RH(40°C) Storage -40~60°C, 20%-93% RH(40°C) |
| Certifications | CE,CB,UL,FCC |
| Box Contents |
Printer (Includes Ribbon) Paper Roll (1ply) UK Mains Lead |
Documentation
| Data Sheet |
Accessories & Spares
| Item | Part Number | Status |
|---|---|---|
| Black/Red Ribbon | RIBY11 | Active |
| Black Ribbon | RIBY11BLACK | Active |
| 1 Ply, 76 x 76mm Paper Roll, box of 20 | PRN24-PAP-1P | Active |
| 2 Ply, 76 x 76mm Paper Roll, box of 20 | PRN24-PAP-2P | Active |
| Ethernet Interface Card | PRNIF-IP | Active |
| Replacement PSU, 24Vdc 1.5A | PRN32-PSU | Active |
| UK Mains Lead to IEC Kettle Plug Straight | LD4010 | Active |
| CAT5 LAN cable - 2M Grey | LDC507 |
