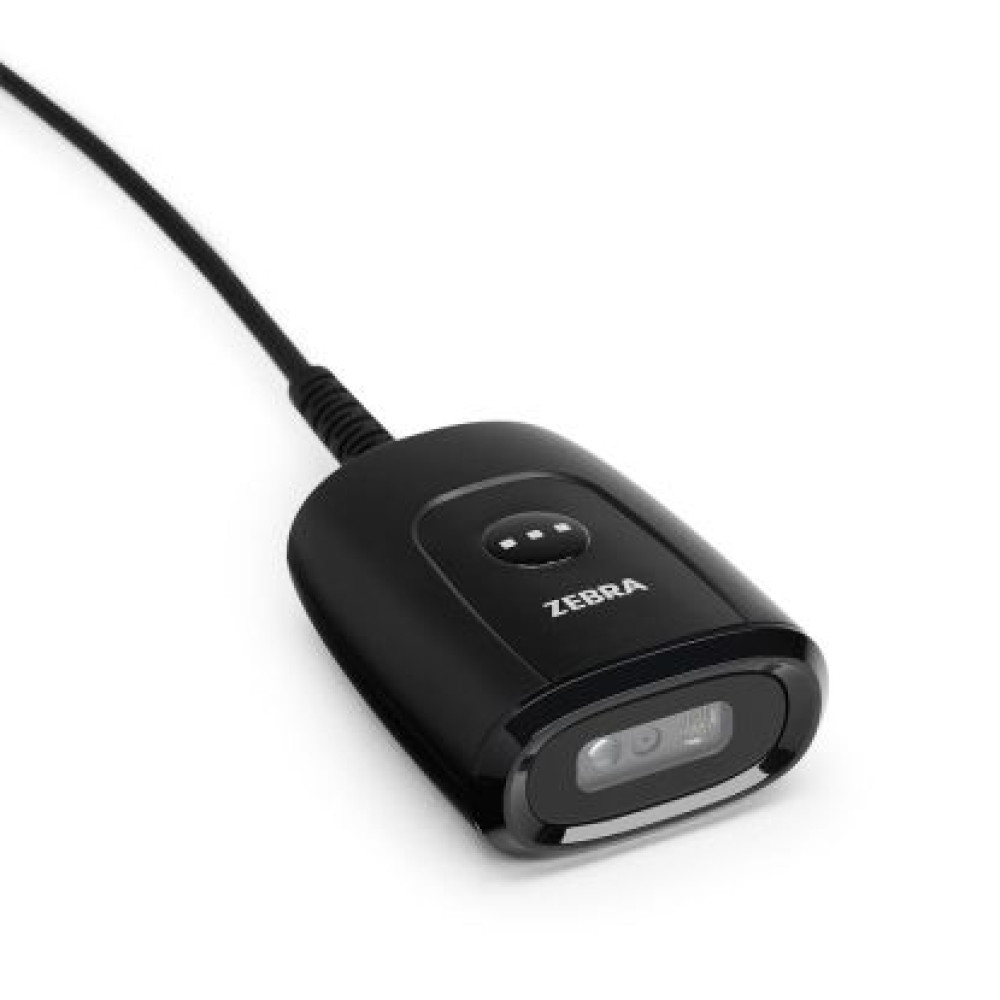

DS5502 2D Fixed Mount Scanner, USB
Part Number: SYMBOL69-BARC-2D-USB
Status: Release
Release Date: December 2024
Description
Next Generation Fixed Mount Imager and a direct replacement for the out SYMBOL65-BARC-2D
Delivers fast, high-volume hands-free scanning of virtually any bar code—including 1D, 2D, and direct part marks (DPM)
Product Details
|
General |
Symbology Decode Capability
All major 1-D bar codes PDF417, DataMatrix, QR Code, Aztec, Composite Codes and MaxiCode US Postnet, US Planet, UK Postal, Australian Postal, Japan Postal Interface RS232 9-pin male D-sub Sensor Resolution 1280 (H) x 800 (V) Imager Field of View 48° H x 30° V nominal Aiming Element Circular 525 nm True Green LED Illumination Element (1) Warm White LED Minimum Print Contrast 15% minimum reflective difference |
| Physical | Dimensions
30mm x 56mm x 72mm Weight 65.2g |
| Power |
Maximum 4.75 to 5.25 VDC Host Powered; 4.75 to 5.25 VDC (External Power Supply)
|
| Environmental | Operating
-4° to 122° F /-20° to 50°C 95% RH, non-condensing at 50°C Storage -40° to 158° F /-40° to 70° C 95% RH, non-condensing at 50°C Sealing IP54 |
| Certifications |
Electrical EN 62368-1:2014/AC:2015 EN 62368-1:2014/A11:2017 IEC 62368-1:2014 EN IEC 62368-1:2020+A11:2020 IEC 62368-1:2018 UL 62368-1, third edition CAN/CSA-C22.2 No. 62368-1-19 Laser Classification EN 62471, IEC 62471 plus all amendments and all national deviations EMI/RFI FCC 47 CFR Part 15B, ICES-003, EN55032, EN55035, EN61000-6-2, EN60601-1-2, IEC60601-1-2, VCCI, and SABS |
| Box Contents |
Scanner USB Cable |
Documentation
| Links to product information |
Manufacturers support page including drivers and developers tools |
Accessories & Spares
| Item | Part Number | Status |
|---|---|---|
| Fixed Scanner Space Pole Bracket | SCAN-BRKT-01 | Active |
| Fixed Scanner Wall or Counter Bracket | SCAN-BRKT-01 | Active |
