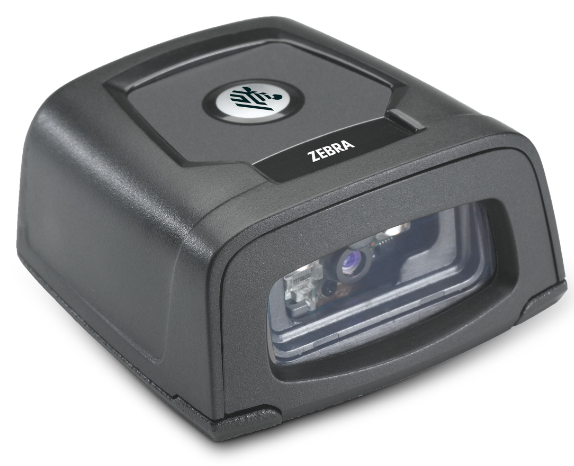

DS457 2D Fixed Mount Scanner, RS232
Part Number: SYMBOL65-BARC-2D
Status: EOL
Release Date: 01 January 2022
Description
Next Generation Fixed Mount Imager.
Delivers fast, high-volume hands-free scanning of virtually any bar code—including 1D, 2D, and direct part marks (DPM)
Product Details
|
General |
Symbology Decode Capability
All major 1-D bar codes PDF417, DataMatrix, QR Code, Aztec, Composite Codes and MaxiCode US Postnet, US Planet, UK Postal, Australian Postal, Japan Postal Interface RS232 9-pin male D-sub Sensor Resolution 752 (H) x 480 (V) gray scale Imager Field of View DS457 SR and DL: 39.6° horizontal, 25.7° vertical DS457 HD and DP: 38.4° horizontal, 24.9° vertical Aiming Element 655 ± 10 nm (VLD) Illumination Element 625 ± 5 nm (LED) Minimum Print Contrast Minimum 25% absolute dark/light reflectance |
| Physical | Dimensions
29.2mm x 58.4mm x 62mm (1.15 in x 2.3in x 2.44in) Weight 111g (3.9oz) |
| Power |
Maximum 5 VDC +/- 10% @ 450 mA |
| Environmental | Operating
-4° to 122° F /-20° to 50° C* (NOTE: Laser aimer disabled above 113° F /45° C) 95% RH, non-condensing at 50°C Storage -40° to 158° F /-40° to 70° C 85% RH, non-condensing at 70°C Sealing IP54 |
| Certifications |
Electrical ETL, VDE, CETL, EN60950, Ctick, VCCI Laser Classification Intended for use in CDRH Class II/IEC 825 Class I devices EMI/RFI FCC Part 15 Class B, ICES-003 Class B, CISPR22 Class B RoHS compliant |
| Box Contents |
Scanner Serial Cable |
Documentation
| Links to product information |
Manufacturers support page including drivers and developers tools |
